Pontoon Boat Seats (PG1778)

• Our Premium Pontoon Boat Seats use plush, pillowed seat cushions with a mixture of soft and dense marine foam for all-day comfort. We use double-top & standard-top stitching on all stress points, so you never need worry about torn seams. Our pontoon boat seats look new longer!
• Our pontoon seats will last! The quality of your vinyl and foam won't matter if your seams tear or rot that's why we only use the best UV and mildew treated polyester thread.
• 32 oz marine grade seat vinyl is coated and treated to exceed industry standards for UV and mildew resistance.
• Our pontoon boat seat cushions are built with a mix of soft and dense foam to give you support and comfort where it matters most. Our Premium pontoon boat seats are built with thicker, softer seat cushions.
• Seat bases with molded drain channels increase the life of your pontoon flooring by allowing water to escape your deck instead of being trapped and left to soak into your carpet and decking.
• No wood! All of our pontoon furniture frames are plastic. We use injection-molded plastic seat cushion frames and rotationally molded plastic seat bases.
• High-grade stainless steel hardware and staples are used on our pontoon seats, along with t-nuts, which are inserted into the plastic bases to secure each pontoon seat cushion.

Pontoon Boat Seat Dimensions:

• 90" minimum needed across rear to install pontoon boat seats
• 90" minimum needed up rear port side for pontoon seats
• 83" minimum needed in front to install pontoon boat furniture

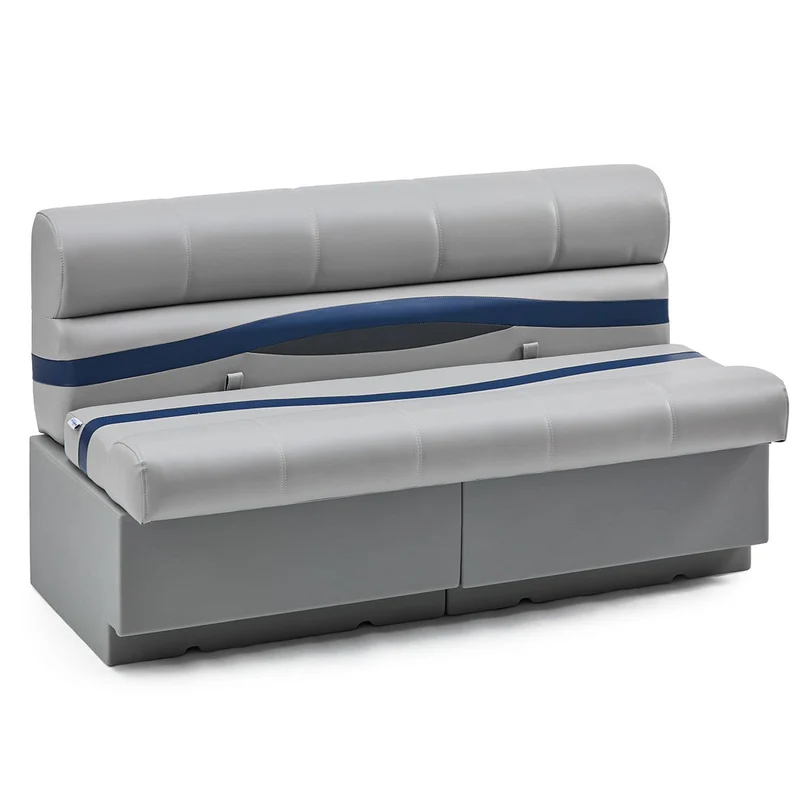

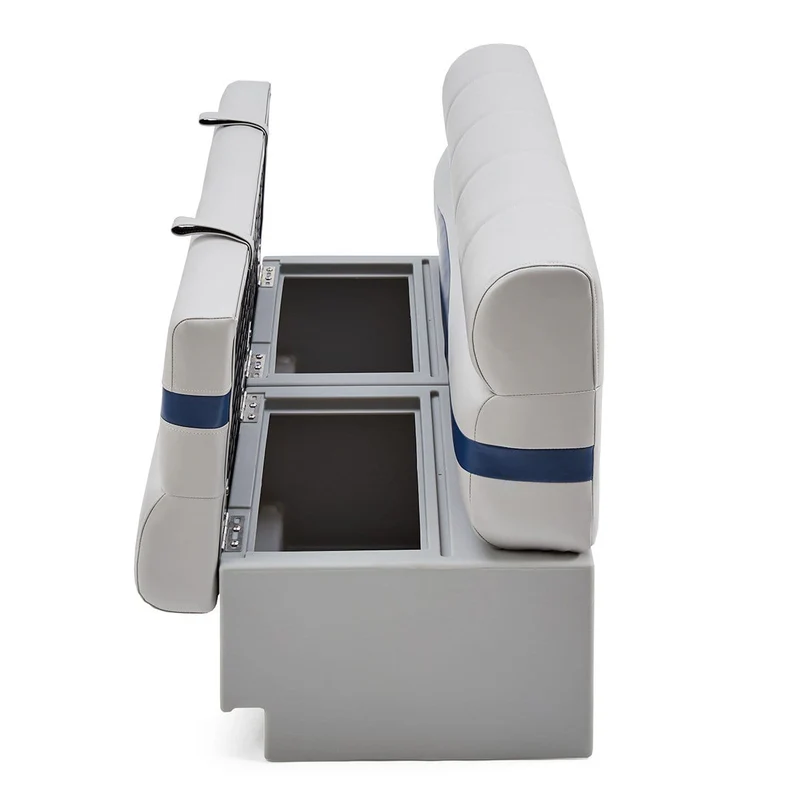

• (4) 55" pontoon boat lounge seats

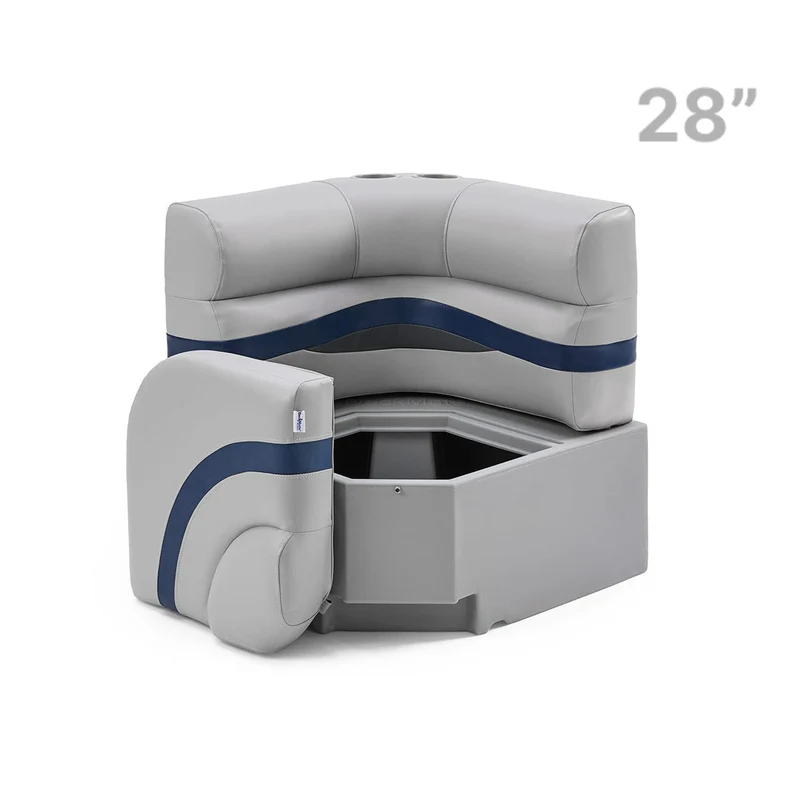

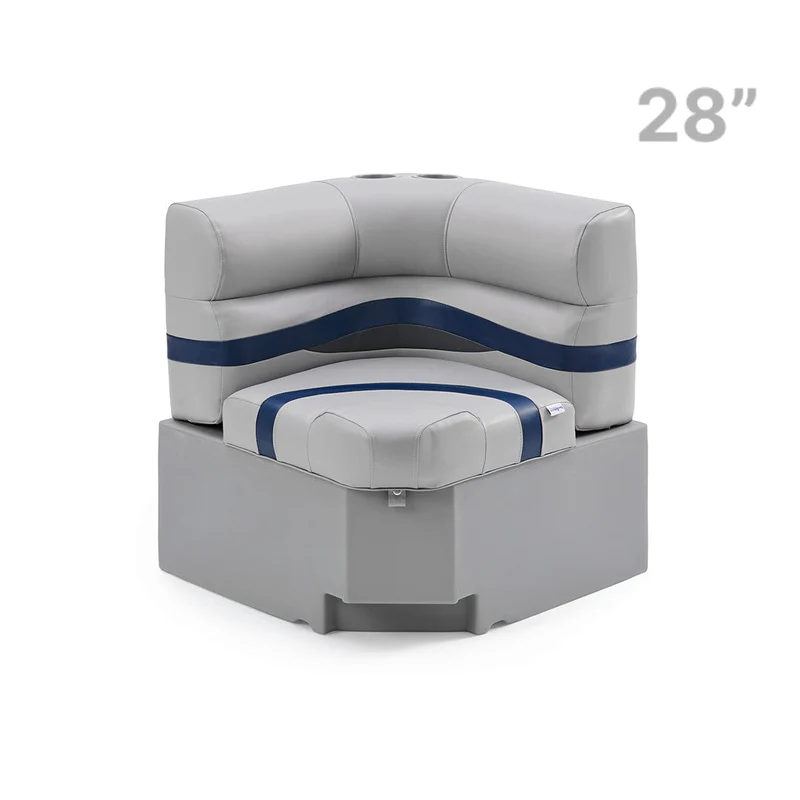

• (3) 28" pontoon boat corner seat with cup holders

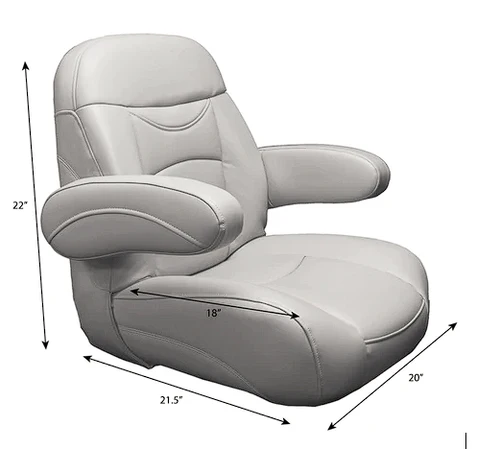

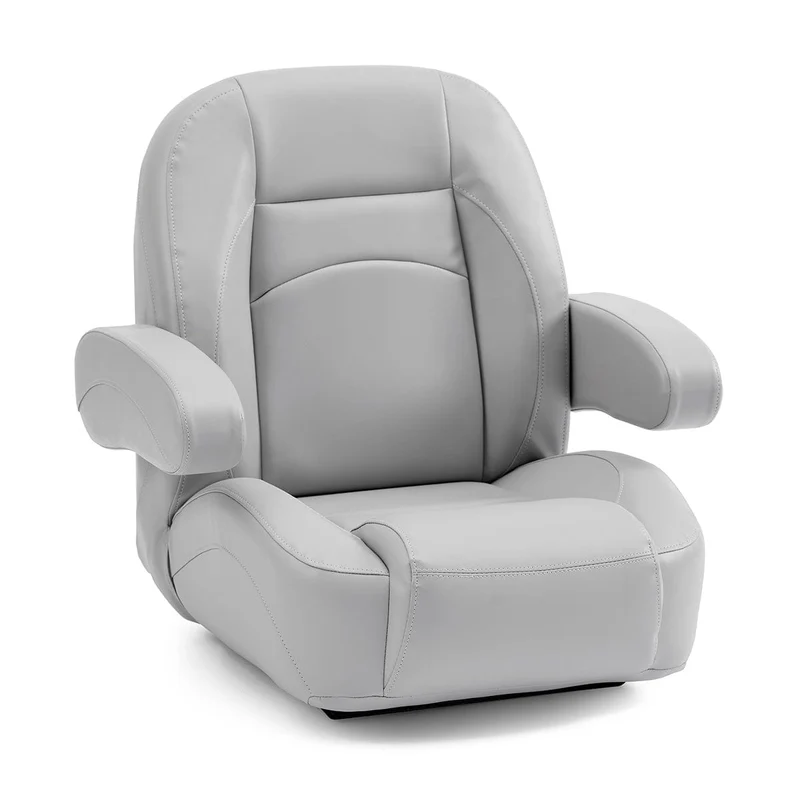

• (1) Pontoon Low Back Helm Chair with pedestal

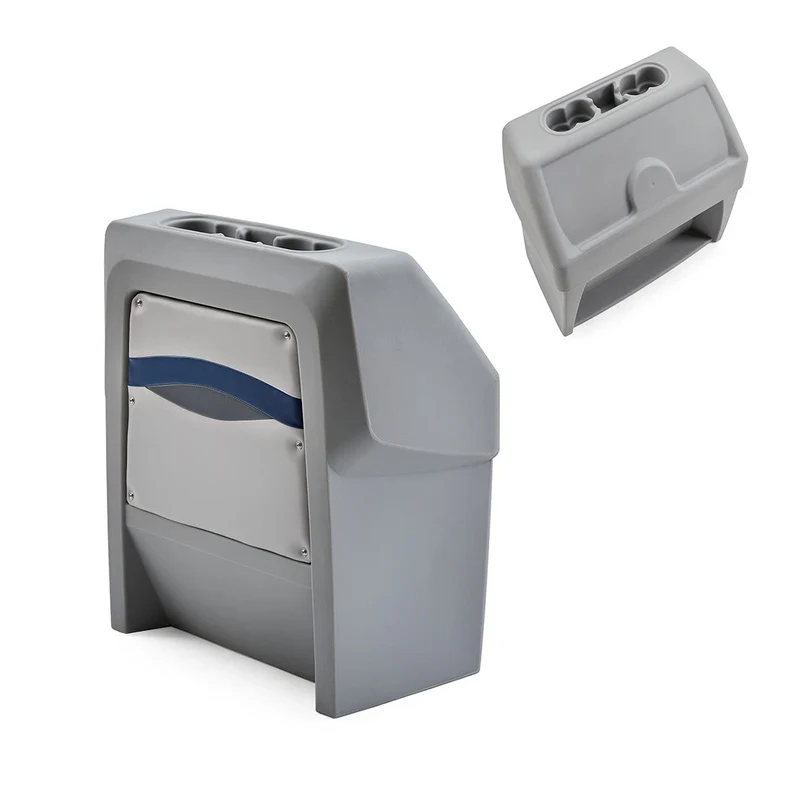

• (1) Pontoon boat steering console

• (1) Right side pontoon boat seat arms with cup holders
• (1) Left side pontoon boat seat arm with cup holders
• Mounting hardware is included to secure seat bases to the deck of your pontoon boat

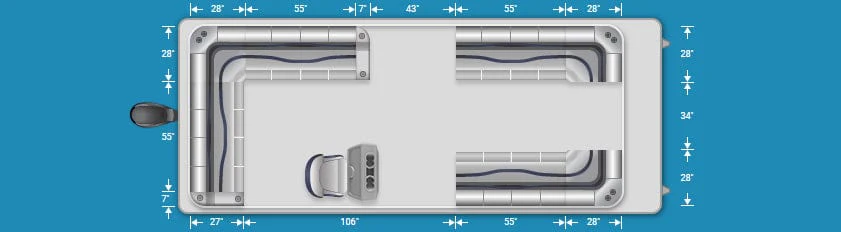

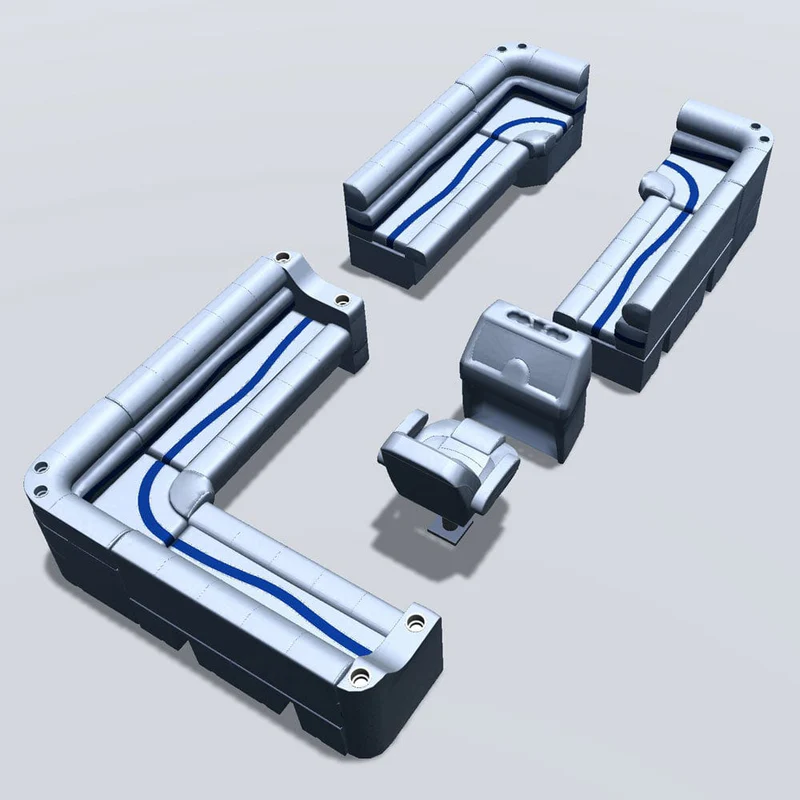

Layout

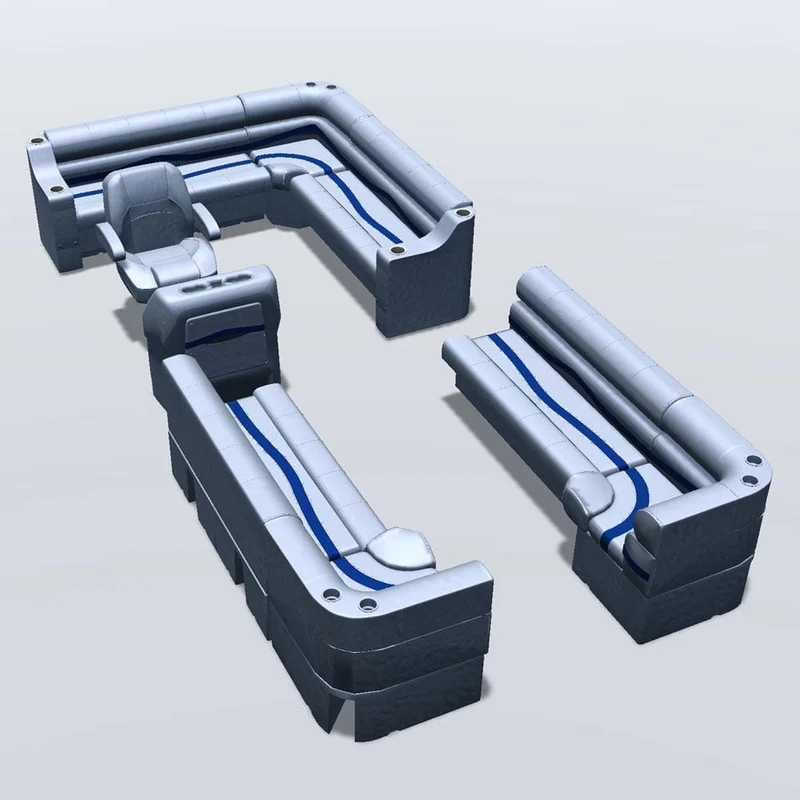

These pontoon boat seats make up our Premium PG1778 pontoon furniture set.

4 - 55" pontoon boat lounge seats

3 - 28" pontoon boat corner seat with cup holders

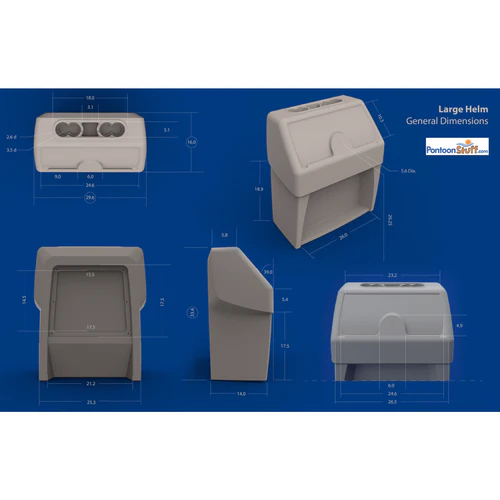

1 - NEW STYLE Pontoon boat steering console

1 - Pontoon boat bucket seat w/ pedestal

1 - Right side pontoon boat seat arms with cup holders

1 - Left side pontoon boat seat arm with cup holders

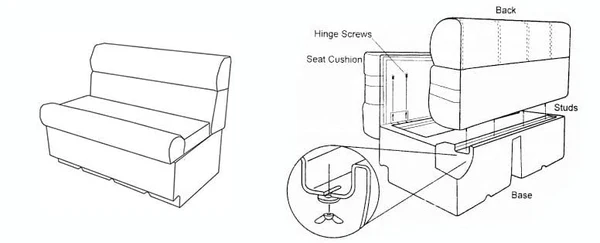

Instructions

1 – Insert stud bolts (E) into the T-Nuts located in the black plastic bar on the bottom of the Back Rest Cushion.

2 – Place the Back Rest within the designated spaces and secure and tighten the 1” Washers © with the Wing Nuts (B) from the inside of the base.

3 – Align hinges attached to the Seat Cushion with the inserts located on the front of the base.

4 – Secure the Seat Cushion to the base with the 1/2” Bolts (D) (You can adjust the hinges left and right, up and down, to get the best fit.)
