DeckMate Large Pontoon Console
100% original guarantee
Return within 30days
Free delivery on most orders

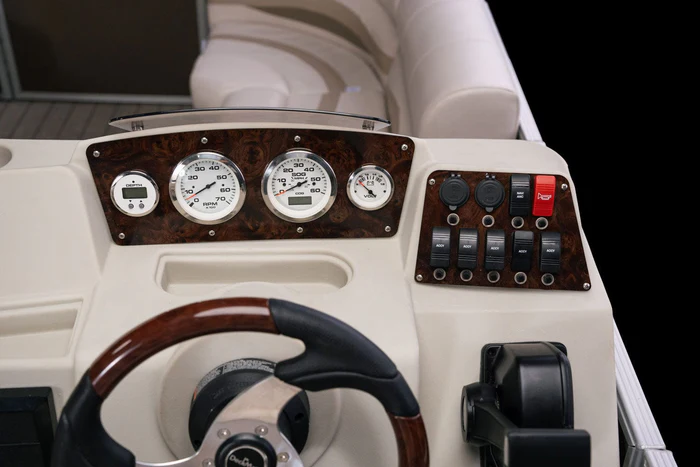

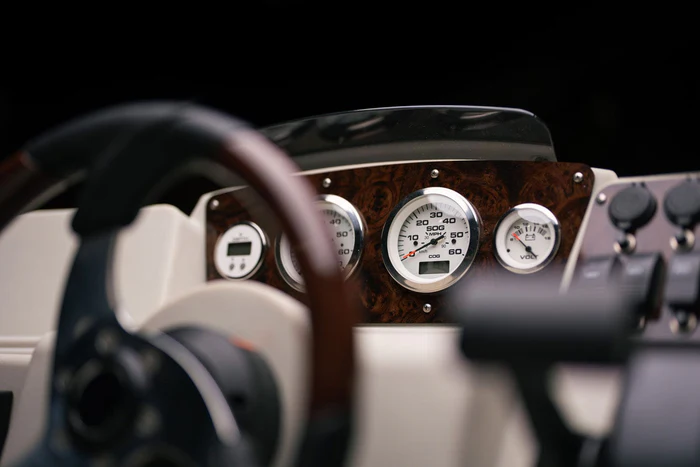

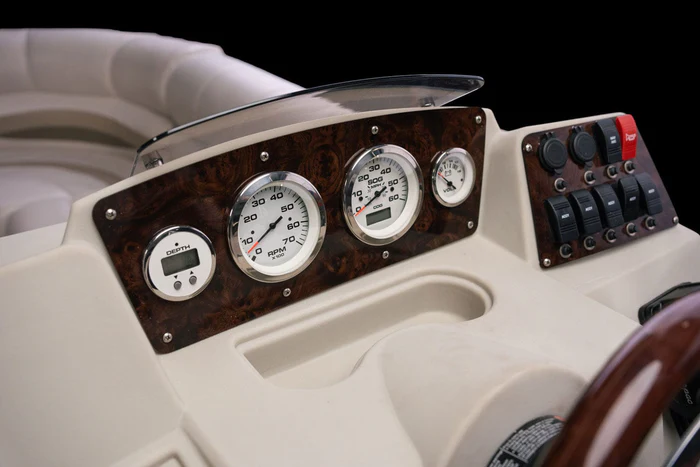

DeckMate® Large Pontoon Console
Upgrade your pontoon boat helm with the DeckMate® Large Pontoon Console, engineered to match our Classic, Premium, and Luxury seating lines. Whether you're customizing from scratch or replacing an older console, this deluxe helm station offers the flexibility and premium construction needed for modern boat layouts.
Key Features
-

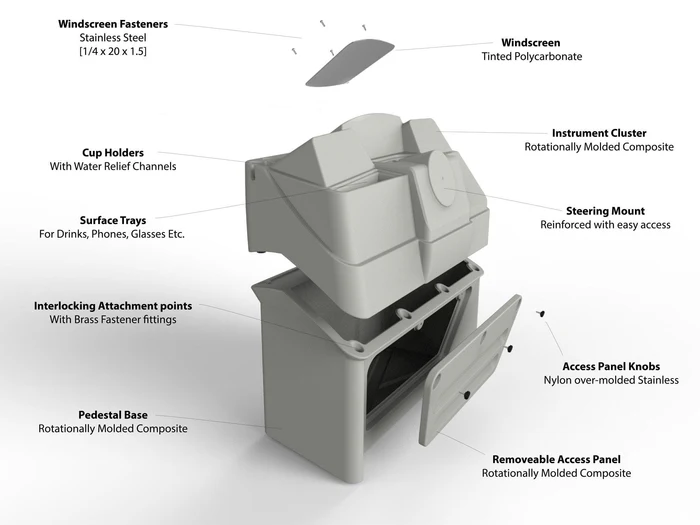

Factory-Grade Build
- Rotationally molded plastic frame – no wood to rot or degrade
- High-grade stainless steel hardware and staples
- T-nuts integrated into the plastic frame for secure seat cushion mounting
- 2-piece captain stand for easier installation
- Removable access panel under the dash for simplified wiring
-
Finish Options
- Accent panels available in Carbon Fiber or Burlwood
Package Options
-

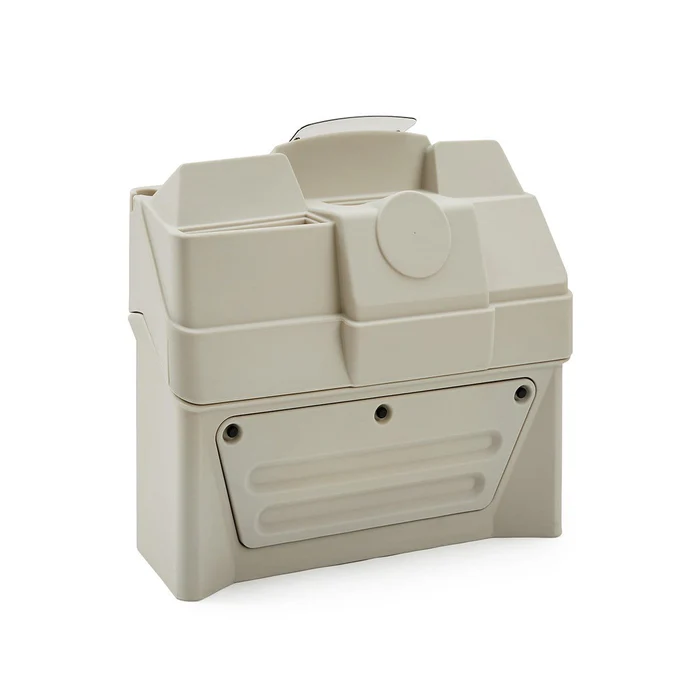

Base Only
- Deluxe Console Base & Windshield
-
Package A
- Base & Windshield
- Blank Accent Panels (Carbon Fiber or Burl)
-
Package B
- Base & Windshield
- Accent Panels (Carbon Fiber or Burl)
- Fully Wired Switch & USB Panel w/ Blank Gauge Plate
-
Package C
- Base & Windshield
- Accent Panels (Carbon Fiber or Burl)

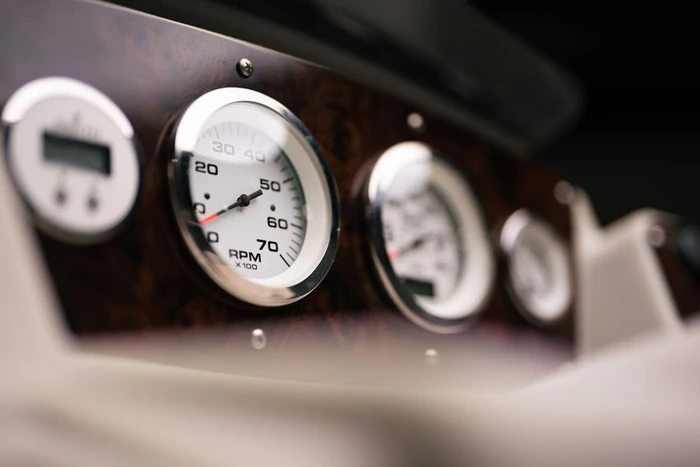

- Fully Wired Gauge Panel: Tachometer, GPS Speedometer, Depth Sounder, Volt Meter w/ Blank Switch Plate
-
Package B + C
- Base & Windshield
- Accent Panels (Carbon Fiber or Burl)
- Fully Wired Switch & USB Panel
- Fully Wired Gauge Panel: Tach | Speedo | Depth Sounder | Volt Meter
Note: Gauge and switch panels are not pre-installed.

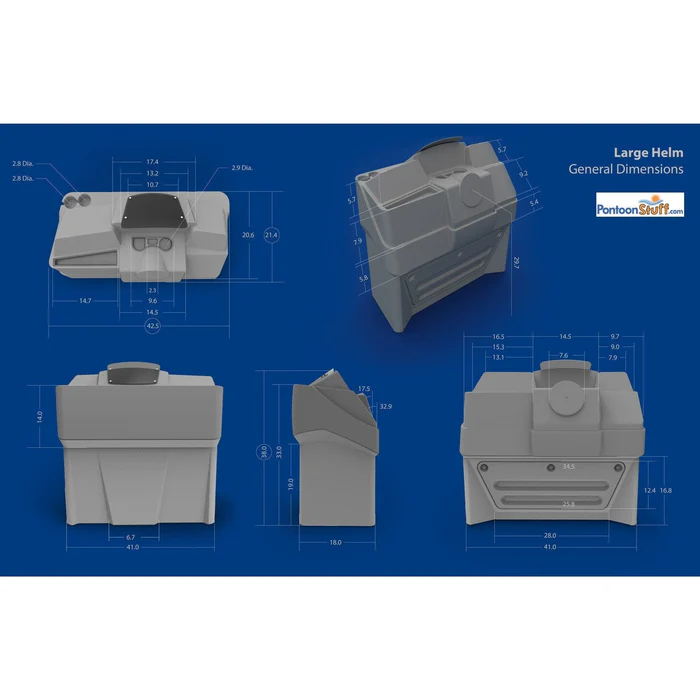

Console Dimensions
- Overall Width: 41"
- Overall Height: 38"
- Overall Depth: 21"

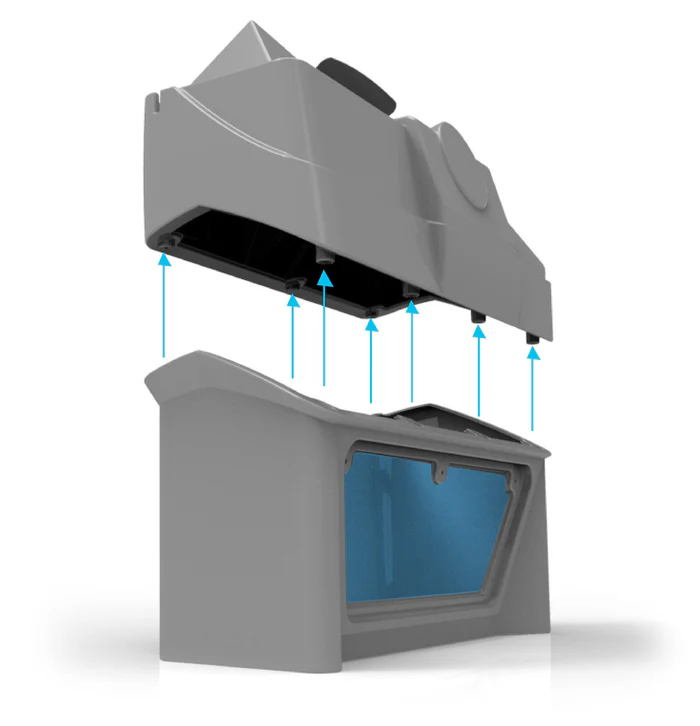

Assembly Instructions
- Insert 1/4-20 stud bolts into the T-nuts on the underside of the helm top (2–3 turns only)
- Align helm top with base slots and secure from the inside using included washers and wing nuts
- Attach the access door using the three (3) black knobs
Download full Assembly PDF for gauge panel installation
Want More Customization?
Browse our full collection of Pontoon Boat Console Parts to tailor your helm setup even further.
| Color | Ivory or Beige or Gray or White |
| Panel Color | Base Only or Burl wood Panel or Carbon Fiber Panel |
| Electrical Components | base only or (A) Blank Switch & Gauge Plates or (B) Fully Wired Switch & USB Panel w/ Blank Gauge Plate or (C) Fully Wired Gauge Panel - Tach | Speedo | Depth Sounder | Volt Meter w/ Blank Switch Plate or (B + C) Fully Wired Gauge Panel and Switch Panel Package |
